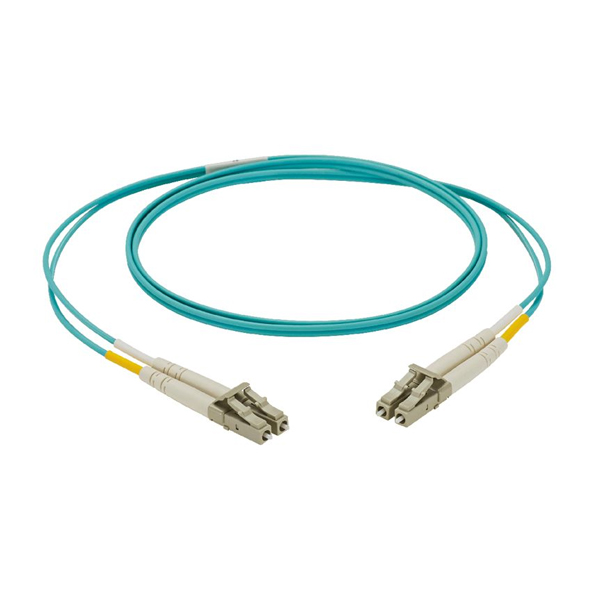

Dây nhảy quang Panduit OM4 – LSZH – LC Duplex – LC Duplex – NKFPZ22LLLSM002 - 2M

Giá bán: Liên hệ

Thông tin sản phẩm

NK 2-fiber OM4 2.0mm LSZH Jacket Patch Cord LC Duplex to LC Duplex - 2m

Mô tả sản phẩm

Loại cáp: Fiber Patch cord – Dây nhảy quang
Chuẩn cáp: Multimode, OM4, LC Duplex connector
Đường kính: 2mm
Màu sắc: xanh aqua
Vỏ cáp được làm bằng vật liệu PVC chống cháy, cho tuổi thọ cao.
Xếp hạng chống cháy: LSZH
Đạt tiêu chuẩn: TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Compliant
Chiều dài: 2, 3, 5, 10, 15M

Thêm vào giỏ hàng

Dây nhảy quang OM4, LC Duplex NKFPZ22LLLSM002 - 2M

Fiber Type	OM4
Number of Fibers	2
Connector 1 Type	LC Duplex
Connector 2 Type	LC Duplex
Sub Brand	NetKey®
Flammability Rating	LSZH
Maximum Connector Insertion Loss (dB)	0.3
Minimum Connector Return Loss (dB)	26
Overall Length (ft.)	9.84252
Overall Length (m)	2, 3, 5, 10, 15
Fiber Diameter (µm)	50
Outer Diameter (In.)	0.078
Outer Diameter (mm)	2
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Installation Temperature (°C)	60
Maximum Installation Temperature (°F)	140
Minimum Installation Temperature (°C)	-10
Minimum Installation Temperature (°F)	14
Resistance Properties	Flame-Resistant
Cable Color	Aqua
Environment	Indoor
Standards Met	TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Compliant
Application	Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Body Style	Duplex
Product Type	Fiber Optic Patch Cord
Boot Color	Aqua
