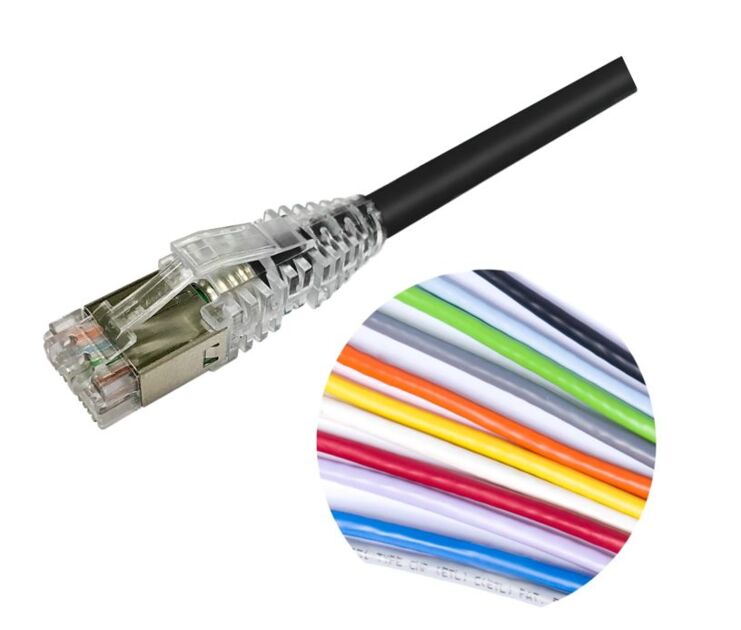

Commscope NPC RJ45 Patch Cord, category 6A, S/FTP, LSZH, 2M (NPC6ASZDB-XX002M)
Giá bán: 236,500 ₫
Thông tin sản phẩm
Commscope NPC RJ45 Patch Cord, category 6A, S/FTP, LSZH, 2M (NPC6ASZDB-XX002M)
NETCONNECT® Cat 6A S/FTP RJ45 Patch Cord, LSZH
Mô tả sản phẩm
NPC RJ45 Patch Cord, category 6A, S/FTP, LSZH, 2M
(XX = BL: Blue, RD: Red, YL: Yellow)
Commscope NPC RJ45 Patch Cord, category 6A, S/FTP, LSZH, 2M (NPC6ASZDB-XX002M)
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America |
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair patch cord |
| Product Series | NPC |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 6A |
| Cable Type | S/FTP (shielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Green | Orange | Pink | Purple | Red | Slate | Violet | White | Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D | IEEE 802.3bt Type 4 | ISO/IEC 11801 Class EA |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Cable Assembly Length Range (cm) | 15 – 999 |
| Cable Assembly Length Range (in) | 6 – 999 |
| Diameter Over Jacket | 5.84 mm | 0.230 in |
| Compatible Conductor Gauge, stranded | 26 AWG |
Electrical Specifications
| Safety Voltage Rating | 300 V |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Safety Standard | Anatel | UL 1863 |
Packaging and Weights
| Packaging quantity | 1 |
