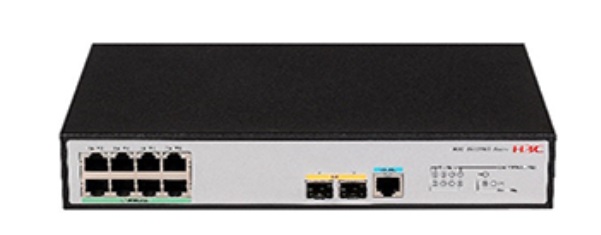

Switch PoE H3C Layer 3 10 Port Gigabit LS-5120V3-10P-PWR-LI-GL
Thông tin sản phẩm
H3C S5120V3-10P-PWR-LI L3 Ethernet Switch
Mô tả sản phẩm
- 8*1000 BASE-T PoE+ Ports (125W) and 2*1000 BASE-X SFP Ports, (AC), FL-02
- Switching: 20Gbps | Forwarding: 15Mpps | Management port: 1 console
- Maximum Stacking bandwidth: 16Gbps | Maximum stacking num: 9
* PoE Ports: 15.4W (802.3af): 8 | 30W (802.3at): 4
- Performance: MAC: 16K | Static Mac: 1K | VLAN table: 4094 | VLAN interface: 32 | IPv4 routing: 1024 | IPv4 ARP: 1024 | IPv4 ACL: 512 | IPv4 multicast L2: 1000 | IPv6 unicast: 240 | QOS forward: 8 | IPv6 ACL: 256 | IPv6 ND: 240 | Jumbo frame length: 10000 | MAX num in one link group: 8 | Link group num: 124
- Quản lý: Cloudnet FREE trọn đời, Web page configuration, Console
8-Port PoE Gigabit Ethernet + 2-Port 1000Base-X SFP Managed Switch H3C LS-5120V3-10P-PWR-LI-GL
Product ID | LS-5120V3-10P-PWR-LI-GL |
Product Description | H3C S5120V3-10P-PWR-LI L2 Ethernet Switch with 8*10/100/1000BASE-T PoE+ Ports (AC 125W) and 2*1000BASE-X SFP Ports,(AC) |
PoE Power Capacity | |
Total PoE power capacity | 125W |
PoE Ports Quantity | 15.4W (802.3af): 8 30W (802.3at): 4 |
Hardware | |
Switching capacity | 20 Gbps |
Forwarding capacity | 15 Mpps |
Networking interface | 8×10/100/1000TX 2×SFP |
